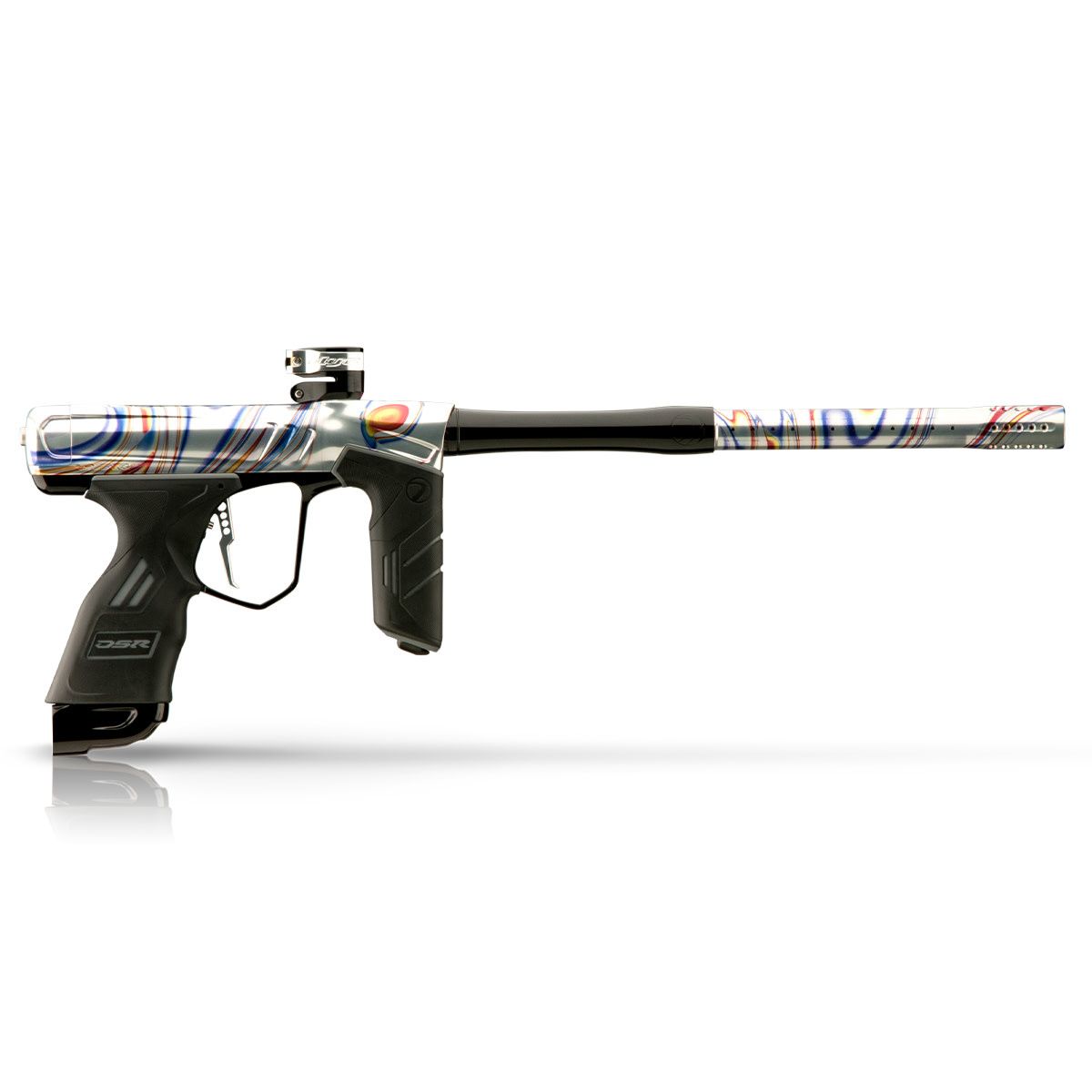

DYE DSR+ Marker PGA Slick Polished

DSR+ features and updates

NEW AND UPDATED FEATURES OVER ORIGINAL DSR

New body design

• Aggressive lightweight and low profile 3-D milling
• Increased grip clearance between frame and foregrip, Epic.
• Increased thumb room accommodates virtually any grip style

New Edge2 trigger

• Offset flat face design
• Improved leverage
• Improved sustainable ramping
• Full adjust trigger
• Pre and post-travel adjustment
• Activation point adjustment
• Tension adjustment

The Edge2 trigger uses a flat face design proven by a world-class competition shooter. The offset parallel faces promote a lower perch on the trigger that creates greater leverage. The mid-point and tip joints offer positive contact points for increased trigger pull consistency and positive feedback against your fingers.

Lever lock clamping feed neck

• Positive grip of any size hopper neck
• All-metal design
• No swivel collar
• Adjustable Cam lever clamp

The adjustable Lever lock allows you to securely lock you R-2™ Loader onto your gun without tools. DYE’s Lever Lock feed neck sits low and tight on the marker making sure your Rotor™ stays low profile with the rest of your gear.

XL ASA lever

• XL lever generates massive leverage
• Traction lobes provide a no-slip grip

Now with an easy turn Extra Large on/off lever, with no-slip traction lobes, gassing up the balanced UL TruCam Airport couldn’t be easier.  The recessed lever design protects from accidental de-gassing of the system.  The sleek, compact airport is integrated with the Hyper 6 reg into a simplified easy to service air handling cartridge, that provides tremendously efficient airflow.

New Quick Turn battery cover lock knob

• Finger turn battery knob
• Quick turn recessed lock nut
• Use thumb or coin. 180deg turn
• Trapped lock nut – can’t loose
• Housed in durable compact front grip

Flex Bolt face now standard

• Proven flex face design
• Extremely gentle paint handling
• Flaring soft tip design offers no blowback or breech drag

The Flex Face soft tip bolt is an instant upgrade to paint handling. The Flex Face bolt tip ensures the most fragile paint will be gently carried through the breach and helps protect irregularly shaped paint from being clipping.

ARC+ bolt design - updated

• Reduced O-ring count
• Longer service cycles
• Simplified service
• Redesigned valve porting
• Improved shot to shot consistency
• Softer, quieter shot signature
• Dwell insensitive
• High efficiency
• Super-low operating PSI (about 110psi)
• Air supply cut off in solenoid
• Minimized chamber expansion
• 2 Stage bolt acceleration
• Air spring return

The all-new ARC+ Bolt is DYE’s groundbreaking engine that delivers amazing performance in a robust, reliable package. The ARC+ Bolt’s smooth quiet shot, high efficiency, and soft touch on paint is the result of precise engineering. Optimized flow paths, dwell independent valve control, air supply cut-off, and nearly zero chamber expansion are all critical design components to the ARC+ bolt air efficiency.  The controlled bolt acceleration, air spring, impact bumpers, and ultra-low operating pressure ensure a smooth quiet accurate shot that is extremely gentle on paint.

• Flex SFR solenoid
• Adjustable flow control
• Tune DSR to preferred shot signature

You can now custom tune the DSR+ solenoid to supply more or less air to the ARC+ bolt. This allows the player to make the shot signature as smooth as possible or give get a crisp positive shot feedback. The flow control lever is easily accessed under the grip. A simple turn left or right will give you your ideal shot signature.

• Stronger sticky grips
• Redesigned stress points to help prevent tearing Dual density material
• Full wrap grip
• Microtexture
• Superior comfort
• Superior grip and control
• 1 screw per side assembly
• The full, wraparound Sticky Grip™ with micro-texture provides the ultimate grip.  Dual-density design offers comfort and control. The single screw design utilizes a durable locking system that ensures a rock-solid grip, and at the same time quick access for service.

• 4th Gen Eye Pipe
• New detent and breech geometry designed to work flawlessly with a much wider range of paint sizes including extremely small paint. Durable self-cleaning system
• Protection from damaging breech ware Improved breach geometry – reduces ball bounce, improved paint handling
• Improved detent geometry – eliminates double feeding, improved extra small paint handling
• New independent integrated leaf spring detents
• Eliminates bulky eye plates and small easily stripped mounting screws
• Compatible with M2, M3, DSR, and Rize Series markers

DYE’s patented Eye Pipe System moves into its 4th generation of refinement with updated breech geometry and independent detents designed to accommodate a wide range of paint sizes including extremely small paint. There are many important features of the Eye Pipe System. It shields the anti-chop eye system from dirt and broken paint. The thick durable polycarbonate pipe is wiped clean by the bolt tip o-ring on every cycle creating a self-cleaning operation that ensures the eyes are always monitoring the breech. Your marker stays protected from harsh environments eliminating permanent performance hindering breech wear. The new shape of the independent leaf spring detents are integrated into the Eye Pipe preventing double feeds and chopped paint, all while eliminating the need for bulky exterior eye plates.
